0 items CHECKOUT. The old style type N heater elements are used with Bulletin 709 motor starters and Overload Relay Blocks.

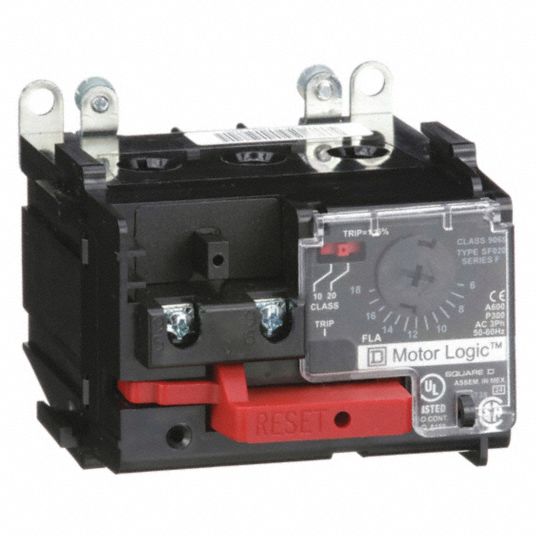

Square D Nema Overload Relay 6 0 To 18 0a 0 Nema Size Electronic Mfr Class 8536 Starters 21am84 9065sf020 Grainger
Below is a list of tables of overload heaters for the more common applications.
. Square D Thermal Unit 21 9 To 31 7 Full Load S For Use With Nema Motor Starters 1 1p 2 1h627 B40 0 Grainger. Refer to the specified table and use control size and motor amps to select the heater code number. If motor amps are not known an.
Find heater table number below using the Product Class Type of Enclosure and Control Size. A square D motor heater. Magnetic motor starters help protect expensive motors from costly overload damage.
Allen Bradley 2100 Centerline 709 2100 Centerline 509. Square D 8536 size 00 AC Magnetic Starters are used in full voltage starting and stopping AC squirrel cage motors. Heater table number is found in the column under the type of overload and phase.
106 rows For combination and reversing Class 8904 starters refer to the large enclosure. You get exactly what you want. Pick from these starters.
The Allen Bradley heater tables below are two of the most common used for sizing standard overload relay protection for Type N and type W heater elements. Square D Thermal Overload Heater Units. To see a full list of the tables please visit pages 25 through 42 of the Square D.
Lets dive in and see what theyr. Full Load Current Based On Horsepower and. I used in a NEMA 1 Manual starter for an air compressor on single phase electricity.
Square D Motor Starters. Ad Find Square D Motor Starter Heater Chart. Motor starter sizing chart for single and three phase motors.
SQUARE D MAGNETIC MOTOR STARTER CONTROL 10HP 40AMP 208-230VOLT 3-PHASE FOR AIR COMPRESSOR MOTORS. Motor Amp Phase Enclosure 1. Square D Magnetic Motor Starter with Thermal Overload.
Motor Starter Sizing Chart - For Single and Three Phase Motors. Vice versa allowing the motor to be used to its maximum capacity in its particular ambient temperature if the motor and overload are in the same ambient. To see the Square D thermal selection chart please visit pages 21 22 of the Square D e-catalog.
Control size and motor amps to select the heater code number. Refer to the specified table and use the controller size and motor amps to select the heater catalog number. Provides under voltage and overload protection and an automatic cutoff in the event of a power failure.
033 - 036 037 - 040. Find heater table number below using the Product Class Controller Size and Phase. Motor overload protection is provided by melting alloy type thermal overload relays.
We are providing a b-40 heater element with starter. If your customer needs. Bimetallic overload relays are also available for sizes 0-6.
Square D 8536 size 2 AC Magnetic Starters are used in full voltage starting and stopping AC squirrel cage motors. Square D 8536SC03 Size 1 starter w B690 heaters Square D Starter Size 1 Class 8536 3 phase Type 500 3 Form S Series A AC volts Max HP 200230 7-12 380460575 10 Heaters B690 Used. SQUAREDOverloadChartforNEMASizeM90andM91Class2510 ManualStarters Forcontinuous9ratedmotorshavingservicefactorsof115.
Square d thermal unit 12 to 18 full load s for use with nema motor starters 00 0 1 1p 2 1h617 b22 grainger. Square D Mag Starters. 36 rows Master page for Square D Heater Element selection tables.
While the Type W heater elements are used with current Bulletin 509 motor starters. About Square D NEMA Combination Motor Starters. Square D Thermal Unit 14 1 To 19 2 Square D Nema Motor Starters 00 0 1 1p 2 1h618 B25 0 Grainger 36 rows Circuit Breakers Renewal Parts Disconnects Starters Contactors Motor Control Centers PLC Bus Plugs Transformers 3-Pole Molded Case Breakers Challenger Cutler-Hammer Federal Pacific General.
Magic line vole starters nema general purpose controls b45 0 overload relay thermal unit square d electric motor starter control 10hp 40a 3ph 208 230v swing technology. Motor overload protection is provided by melting alloy type thermal overload relays. Cheaper than local supply shops.
Once tripped the thermal overload relay will not reset until it has cooled automatically allowing the motor to cool before it can be re-started. Provides typical FLA SC protection conductor size and motor starter information. This is Brand New in the box Square D motor starter.
Typical Single Phase Three Phase Motor Data. If motor amps are not known an. B Motor Amp b Phase 1.
Heater table number is found in the column under the type of overload and phase. Square D Thermal Unit Selection Work in Progress Table 1 Click here to browse our inventory of Square D heater elements at our online store. NEMA Size Fuse Clip Size Voltage VAC Horsepower Overload Relay Current Range Combination Starters UPCEAN 0 or 1 30 A 208 or 240 3 to 5 Melting Alloy na 8538SCASP1 785901685043 1 60 A 208 or 240 5 to 75 Melting Alloy na 8538SCASP2 785901863137.
30 rows Square D Heater Element Chart. Motor Full-Load Current Amp Thermal Unit Number. Cr123c Ch123r Manual Motor Starter Heaters.
Class 8536 starters are available in NEMA SIZES 00-7. Taken from working equipment Email or call 920-684-9999 w questions Please read prior to bidding You are buying the above as isIf you are not sure what that means. Bimetallic overload relays are also available for sizes 0-6.
Class 8536 starters are available in NEMA SIZES 00-7. Number 033 - 036 037 - 040 041 - 045. Square D Thermal Overload Heater Units Square D Motor Starters Heater Elements Square D Parts Square D Thermal Unit Selection Work in Progress Table 1 Click here to browse our inventory of Square D heater elements at our online store Motor Full-Load Current Amp Thermal Unit 1 TU.
Shop with CONFIDENCE FAST SHIPPING 1 YEAR WARRANTY. The b-40 is the overload to be used with a 5hp application. Southland stocks a full line of Motor Starts Contactors and Renewal Parts.
NEMA magnetic motor starters from Square D include an electromagnetically operated switch providing a safe method for starting an electric motor. Today we take a look at thermal heaters or overloads in motor starters including how they function and how to size them. This 5hp 1ph 208-240 volt magnetic starter comes complete in a Nema 1 size enclosure The 8911dpsg32v09 starter has a 30 amp contactor and will work for any 1-5 hp application.
